Electronic Lettering Machine
LM-550A/PC
High Speed Marking
LM-550A has an enhanced feeding and half-cutting system that provides you with marking speed at 40mm/second. LM-550A can make 52pcs of 20mm-length tube per minute!  Large Built-in Memory StorageLM-550A/PC can save 250,000 characters (5,000 characters/file, up to 50 files) in its built-in memory storage. Connect to Your PC With USB LM-550A/PC features USB port for adirect cable connection with a Windows PC (for direct printing or file transfers),and a USB flash drive slot for tranferring computer files made in our dedicated "LETATWIN PC EDITOR" software.  Various marking media and sizes are now supported by the LM-550A
To optimize printing quality for your media, multiple combinations of print settings (such as vertical/horizontal print positions and print density) can be saved.

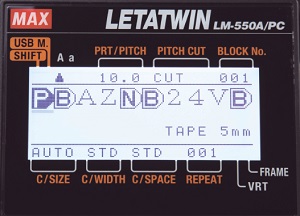

Large Backlit LCD Display
Backlit LCD display makes for easy operation, even in a dim workplace.
 You can adjust the half cutting depth with the "Half cutting depth adjustment lever" to suit your tube or tape marking needs.  Adjustable Marker Pitch (Maximum 60mm) The pitch of the marker can be adjusted easily, and has a wide size range in order help you make the markers needed at your site.
Marking on tape : 4 to 60mm
Marking on tube : 10 to 60mm *(Auto pitch function is available for more than 60mm)*
Economical Refillable Ink Ribbon
Improve your cost performance by using our economical ink ribbon system. There is no need to throw away the entire cartridge. Simply replace the ink ribbon!
|
Consumables
INK RIBBON CASE
LM-RC500 (20pcs./ctn) |
| ECONOMICAL INK RIBBON (10 ROLLS/BOX) LM-IR50B(BLACK) 110m/ROLL FOR HEAT SHRINK TUBE LM-IR50BP(BLACK)110m/ROLL LM-IR50W(WHITE)70m/ROLL |
HIGH QUALITY PVC TUBE
| LM-TU432L White | 3.2mm dia. x 200m/roll |
1Roll/box
|
| LM-TU436L White | 3.6mm dia. x 200m/roll | 1Roll/box |
| LM-TU442L White | 4.2mm dia. x 200m/roll | 1Roll/box |
| LM-TU452L White | 5.2mm dia. x 135m/roll | 1Roll/box |
| LM-TU464L White | 6.4mm dia. x 100m/roll | 1Roll/box |
| LM-TU480L White | 8.0mm dia. x 70m/roll | 1Roll/box |
UL RECOGNIZED TUBE
| LM-TU332N2 White | 3.2mm dia. x 100m/roll | 1Roll/box |
| LM-TU336N2 White | 3.6mm dia. x 100m/roll | 1Roll/box |
| LM-TU342N2 White | 4.2mm dia. x 80m/roll | 1Roll/box |
| LM-TU352N2 White | 5.2mm dia. x 80m/roll | 1Roll/box |
TAPE CASSETTE
| LM-TP505W(White) | 5mm(W) x 16m(L)/pc. | 10pcs./box |
| LM-TP505Y(Yellow) | 5mm(W) x 8m(L)/pc. | 10pcs./box |
| LM-TP505T(Transparent) | 5mm(W) x 8m(L)/pc. | 10pcs./box |
| LM-TP509W(White) | 9mm(W) x 16m(L)/pc. | 10pcs./box |
| LM-TP509Y(Yellow) | 9mm(W) x 8m(L)/pc. | 10pcs./box |
| LM-TP509T(Transparent) | 9mm(W) x 8m(L)/pc. | 10pcs./box |
| LM-TP512W(White) | 12mm(W) x 16m(L)/pc. | 10pcs./box |
| LM-TP512Y(Yellow) | 12mm(W) x 8m(L)/pc. | 10pcs./box |
Specifications
| Name | MAX ELECTRONIC LETTERING MACHINE LM-550A/PC |
| Dimensions | 295(W) x 293(D) x 94(H)mm |
| Weight | 2.4kg |
| Printing method | Thermal transfer method(300dpi) |
| Display | LCD dot matrix : 64 x 160Pixel (Backlit) |
| Printing speed | 40mm/s(Standard) 20mm/s(Low temperature mode) |
| Maximum printing length |
Tube : 20m, Tape : 5m
By multipule copy printing, maximum 30 copies. Upto Tube : 100m, Tape : 7m |
| Maximum character input | 5,000 characters per file |
| Character size | 1.3, 2, 3, 4, 6 mm height |
| Usable tube size | PVC Tube: Diameter 1.5mm ~ 8.0mm [for 1.5~2.0mm diameter tubes, the dedicated attacthment is required. Included with purchase]. Heat Shrinkable Tube: Diameter 2.0mm ~ 6.5mm. |
| Usable tape size | Width 5,9,12mm (MAX genuine tape) |
| Tube cutting method | Auto half cut, manual full cut |
| Internal memory | 250,000 characters(Maximum 50 files) |
| External memory | USB memory |
| Interface | USB 2.0 full speed |
| Power supply | DC 12V, 3.0A [Use only specified AC adapter(100V-240V) included in the package.] |
| Power consumption | 30W (max.) |
| Operating environment | 10 to 35 degrees celcius |
Please contact for price related queries and placing orders at :
Mindware,
S-4, Pankaj Plaza, Pocket-7, Plot-7,
Near Metro Station(Dwarka-12),
Metro Pillar No-1030, New Delhi-110078, India
S-4, Pankaj Plaza, Pocket-7, Plot-7,
Near Metro Station(Dwarka-12),
Metro Pillar No-1030, New Delhi-110078, India
+91-11-28032434, +91-11-46102688
+91-9717122688, +91-9810822688
